Transaction Drawer PP-18

TDG-1010 Transaction Drawer is bullet resistant and weather resistant. It is well suited for drive-up service. Drawer moves on heavy duty ball bearing slides and the front doors open as drawer is extended.

The drawer locks automatically when closed. Lexan lid permits clear view inside drawer and remains closed when drawer is open to customer.
Bill clip and coin pad are furnished inside drawer to hold currency.

Drawer can be mounted in wall up to 8 5/8" thick. Drawer and housing are constructed of bullet resistant plastic. Doors, hood and flange are stainless steel.

Drawer inside dimension: 14 1/2" wide x 12" high x 20" deep.

Drawer extensions: 15 1/2"

Wall opening size: 19 1/4" wide x 16 1/2" high.

Class I bullet resistant.

To order please call 802-824-9808 or send and email to .(JavaScript must be enabled to view this email address).

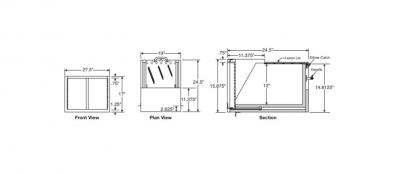

Transaction Drawer Diagrams


Ballistic Product41
