Gaffco’s Pass-Thru Drawer PP2-316, PP2-319, PP2-150, PP2-160

With the stainless steel deal tray in place, Gaffco's System III Pass-Thru Drawer can be used for cash/credit card transactions. When the operator removes the deal tray, larger items such as gallon containers can be transferred. A push button handle incorporates a self-contained locking mechanism. Drawers with cash componets have the added feature of a forward hinged locking cover. Model 670160 has the advantage of double hinged covers to prevent simultaneous customer/operator access to transfer area. Units are finished in brushed stainless steel and shipped assembled.

To order please call 802-824-9808 or send and email to .(JavaScript must be enabled to view this email address).

Diagrams

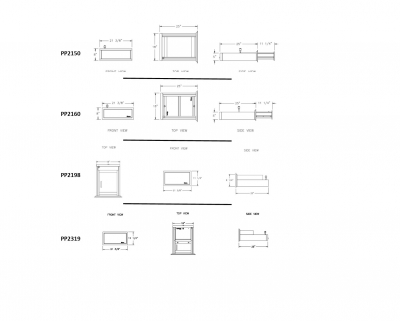

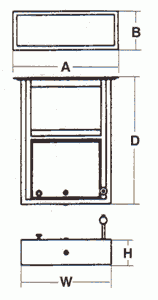

Gaffco’s Pass-Thru Drawer Diagrams

Specifications

Model Overall Size Transfer Area Wall Opening
W H D Width Height Depth Width Height
PP2-316 18" 5" 25" 13 3/4" 4 1/8" 9 5/8" 19 11/16" 6 1/4"
PP2-319 18" 8 1/2 " 25" 13 3/4" 7 7/8" 9 5/8" 19 11/16" 9 1/12"
PP2-150 18" 5" 25 13 3/4" 4 1/8" 20" 19 11/16" 6 1/4"
PP2-160 18" 5" 25 13 3/4" 2 3/4" 18 1/2" 19 11/16" 6 1/4"

Photos
