Gaffco’s Pass-Thru Cassette PP-331, PP-330, PP-316, PP-319

Gaffco's Pass-thru Cassettes add communication systems to large Pass-Thru drawers. Most models come with a built-in sound system that requires a 110-volt power source within 5 feet of the unit.The larger cassette transfer area allows cash, credit cards and small packages to be passed easily. Larger units allow transfer of six-packs, motor oil and larger packages. Unit are finished in brushed stainless steel and shipped assembled.

To order please call 802-824-9808 or send and email to .(JavaScript must be enabled to view this email address).

Diagrams

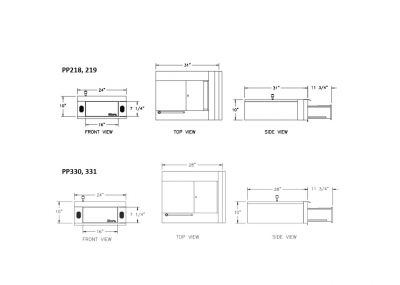

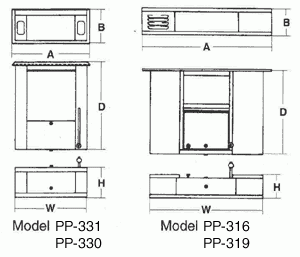

Gaffco’s Pass-Thru Cassette Diagrams

Specifications

Model Overall Size Frame Face Transfer Area Wall Opening Feature
W H D A B W H D W H
PP-331 24" 10" 28" 26" 11" 13 3/4" 6 1/8" 10 3/8 24 1/4" 10.25" SS
PP-330 24" 10" 28" 26" 11" 13 3/4" 6 1/8" 10 3/8 24 1/4 10 1/4 SO
PP-316 34" 7" 25 1/2" 39" 8 1/2" 13 3/4" 4 1/8" 9 5/8 34 1/4 7 7/8 CC
PP-319 34" 7" 25 1/2" 39" 11 3/4" 13 3/4" 6 1/8" 9 5/8 34 1/4 10 1/2 CC
SS=Built in Sound System SO=Pre Wired Speakers Only CC=Cash Compartment



Photos
