Gaffco’s Duo-Drawer PP-145, PP-155, PP-183
System III Duo-Drawers offer two distinct functions in one unit. A built in sliding deal tray can be used for small product transactions. When unlocked, the drawer's movable frame reveals a larger transfer area. A desireable option is Shure's Weatherguard Frame which includes an assembly with plastic cover. Units are finished in brushed stanless steel and shipped assembled.
To order please call 802-824-9808 or send and email to .(JavaScript must be enabled to view this email address).

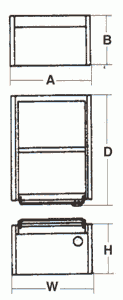

Diagrams
Specifications
| Model | Ovelall Size | Frame Face | Transfer Area | Wall Opening | ||||||
| W | H | D | A | B | W | H | D | W | H | |
| PP-145 | 16" | 10" | 21" | 16" | 10" | 13 1/2" | 6 5/8" | 6 5/8 | 16 1/4" | 10 1/4 " |
| PP-183 | 16" | 15" | 21" | 16" | 15" | 13 1/2" | 11 5/8" | 11 5/8" | 16 1/4" | 15 1/4 |
| PP-155 | 16" | 20 1/2 " | 25" | 16" | 20 1/2 " | 13 1/2" | 15 1/2" | 9" | 16 1/4" | 20 3/4" |
Photos
